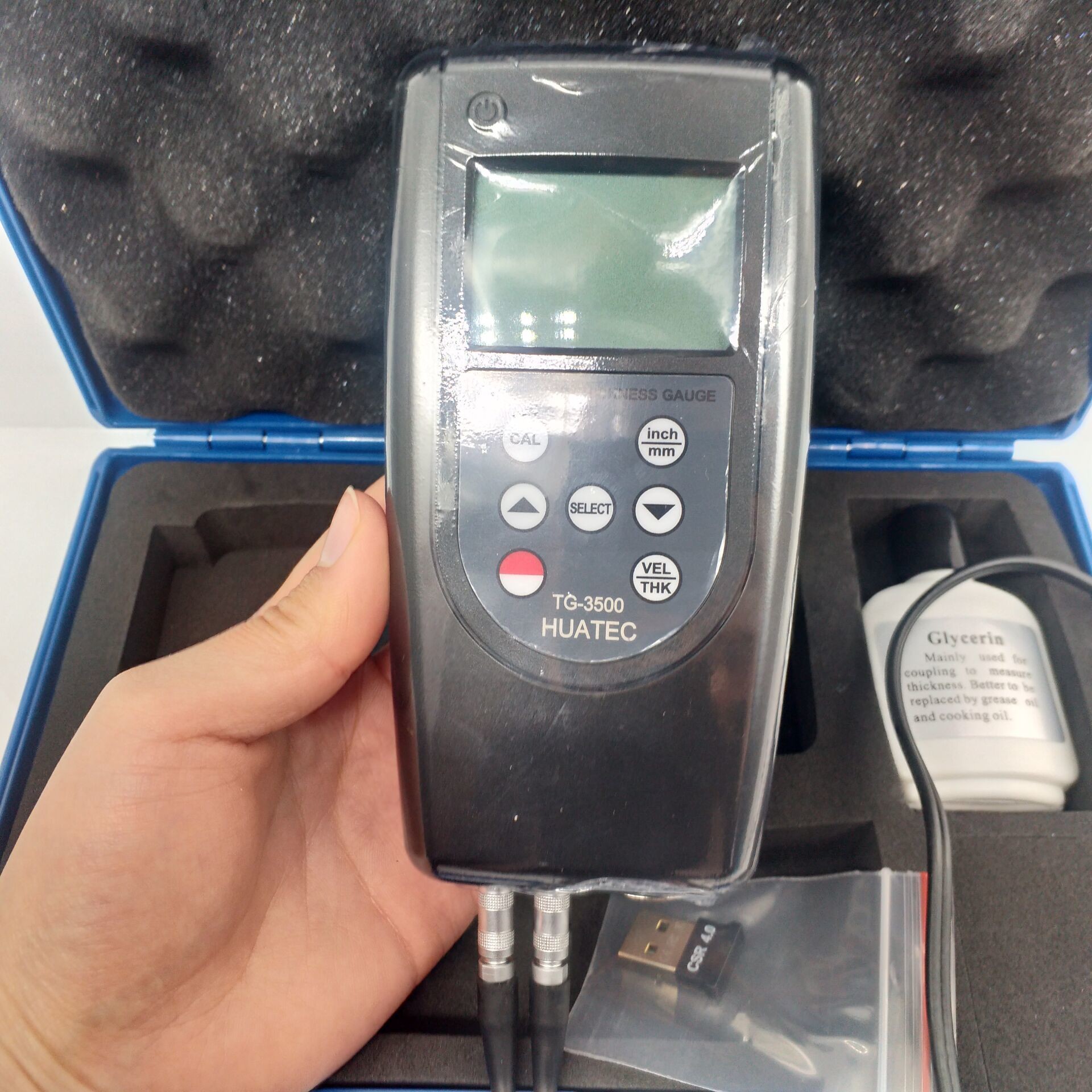

400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic

Brand Name : HUATEC

Model Number : TG-3500

Certification : ISO, CE, GOST

Place of Origin : Beijing

MOQ : 1pcs

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1-4days

Packaging Details : Standard export package

Range : 0.75-400mm

Display : 4 Digit, 10 mm LCD

Operating Principle : Ultrasonic

Battery Indication : Low Battery Indication

Sound Velocity : 1000~9999 m/s

Resolution : 0.1mm / 0.01mm / 0.001inch

Product name : Ultrasonic Thickness Gauge

Contact Now

400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic



400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and PlasticUsed for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.







Features

* Using the latest high performance and low power consumption microprocessor technology.

* Automatic memory material code and sound velocity value, convenient to use.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output”



Specifications

  Display

  4 Digit, 10 mm LCD

  Operating Principle

  Ultrasonic

  Measuring Range (metric / Imperial)

  0.75~400mm (45# steel) (Depend on Probe)

  Battery Indication

  Low Battery Indication

  Sound Velocity

  1000~9999 m/s

  Lower Limit Steel Pipes

  Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer

  Calibration Block

  Included

  Resolution

  0.1mm / 0.01mm / 0.001inch

  Accuracy

  ± (0.5%n + 0.1)

  Power off

  Auto Power off & Manual Power Off

  Operating  Conditions

  Temperature: 0~40 °C, Humidity: < 85 %RH

  Power Supply

  4 x 1.5 V AAA (UM-4) Battery

  Dimensions

  140 x 72 x 34 mm

  Weight

  185 g (Not Including Batteries)



Standard Delivery:

 1. Main Unit

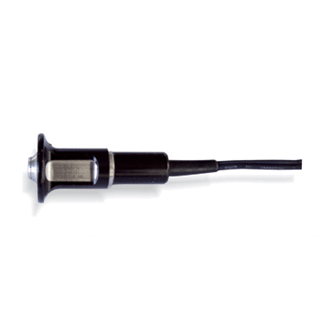

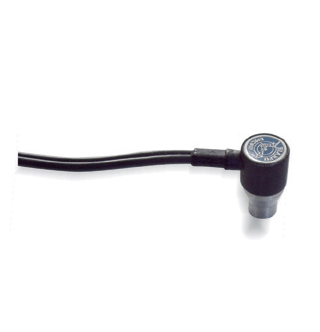

 2. 5MФ8 Standard Sensor

 3. Coupling Agent

 4. Carrying Case

 5. Operating Manual

Optional Accessories:

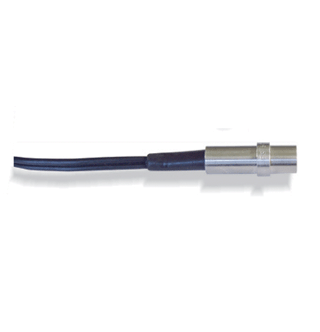

 1. 6M Φ6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

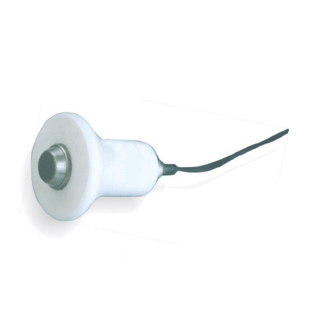

 2. 5M Φ12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

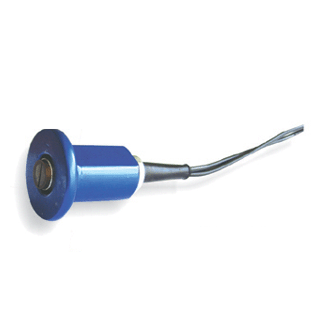

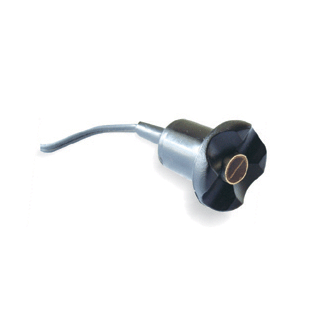

 3. Curved Surface Probe

 4. USB, RS-232C data cable with software

 5. Bluetooth data output with software



400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic

400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic
